Product: Roof Sheet Roll Forming Machine, Roofing Sheet Roll Forming Machine, Roof Panel Roll Forming Machine

Summary of Roof Sheet Roll Forming Machine:

 Coil Material  Coil  Color Steel, Galvanised, Roofing Sheet
 Coil Thickness  0.3-0.8mm
 Coil Width  Customized
 Yield Strenth  250-350Mpa
 Decoiler  Decoiler Type  Manual or hydraulic or automatic type
 Weight Capacity  5T or 6T or 8T or 10T, customized
 Main Roll Forming  Forming Station  18 forming stations, depend on profiles
 Roller Material  High grade 45# steel, surface with hard chrome 0.05mm
 Shaft Material  High grade 45# steel, quenched
 Shaft Diameter  76mm
 Drive Type  Chain Drive
 Forming Speed  0-15m/min
 Main Power  5.5KW
 Cutting Device  Cutting Type  Hydraulic cutting
 Cutting Die Material           Cr12Mov steel, HRC58-62
 Cutting Tolerance  +/-1.5mm(10m)
 Electrical System  PLC Brand  PANASONIC brand
 Inverter Brand       YASKAWA brand
 Encoder  OMRON brand
 Touch Screen  MCGS brand
 Hydraulic System             Hydraulic Station  Famous Chinese Brand
 Hydraulic Power  3KW
 Runout Table  Table Type  Simple non powe type table
 Function of Table  To support the profile sheets after cutting

 Main Components of Roofing Sheet Roll Forming Machine

 Decoiler  1 Unit
 Feeding Guide  1 Unit
 Main Roll Forming  1 Unit
 Cutting Device  1 Unit
 Hydraulc Station  1 Unit
 PLC Control Board  1 Unit
 Runout Tabe  2 Units

Working Flowing of Roof Sheet Roll Forming Machine:

Decoiler -> Feeding -> Roll Forming -> Cut to lendth -> Support table

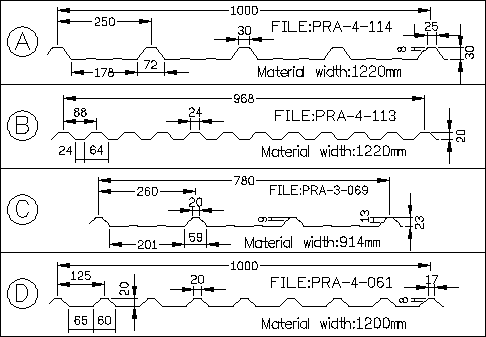

Following Roof Profile Drawings of Roof Sheet Roll Forming Machine for reference:
