YX62-320-690 Metal Deck Sheet Roll Forming Machine


YX62-320-690 Metal Deck Sheet Roll Forming Machine


Main Specifications

  • Material thickness: 0.7-1.2mm
  • Forming Station: 24 stations ( depend on profile )
  • Principal axis diameter: 90mm
  • Main power: 2x11KW
  • Machine dimension: about 11900x2500x1400mm (LXWXH)
  • Weight of machine: about 18 Ton
  • Main Technical Specification:
  • Decoiler: Manual or hydraulic decoiler
  • Weight capacity of decoiler: 5 Ton
  • Axis material: 45# bearing steel
  • Roller material: 40Cr steel
  • Forming speed: 0-15m/min
  • Drive: 1.5' chain transmission
  • Thickness of Post frame: S18
  • Main motor: 2x11KW
  • Cutting: Hydraulic cutting
  • Hydraulic power: 4KW
  • PLC: Panasonic Brand
  • Support table: Simple nonpower type

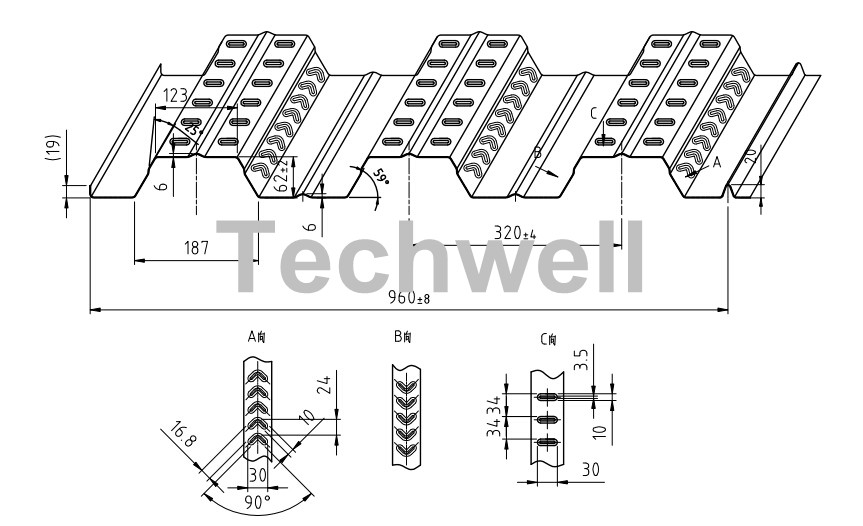

Metal Floor Deck Profile Drawing


deck drawing

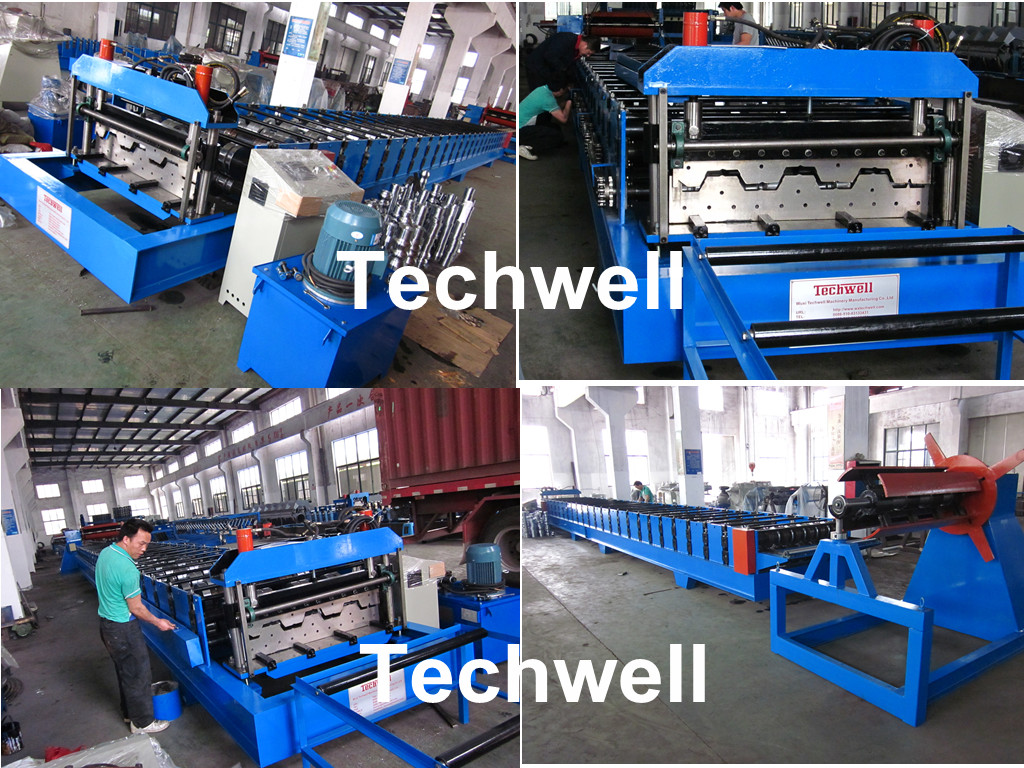

metal deck roll forming machine
