Steel Growing Gutter Roll Forming Machine

Contents

Movable Steel Growing Gutter Roll Forming Machine is made up with mobile caterpillar chassis 360° free rotate, cassette roll forming machine, 4 ton uncoiler, hydraulic station, plc control system and the support tables.


The forming material is Painted Galvanized steel coil with coil width 400mm (for strawberry) and 600mm (for tomato).


The way to roll forming of the growing gutter profiles, Caterpillar Chassis, PLC control system and Hydraulic system are special developing for the mobile greenhouse gutter machines through constant project practice and exploration, we can see our machines are most stability, and strong, and the finished profiles are high quality.


WUXI TECHWELL is the first to research, develop, produce the greenhouse gutter machines in China and we also do projects of greenhouse to support the whole hanging, standing growing gutter system, We have got highly approved in the greenhouse market no matter the machine or finished growing gutter system. So our gutter machines have characteristic of strong stability and most reasonable matching of the Caterpillar Chassis, hydraulic system & PLC control board to realize the pressure adjustable of each action of forward, backward, rotate no matter when loading with or without coil on the machine when walking on the different roads, through different projects practice and developing.

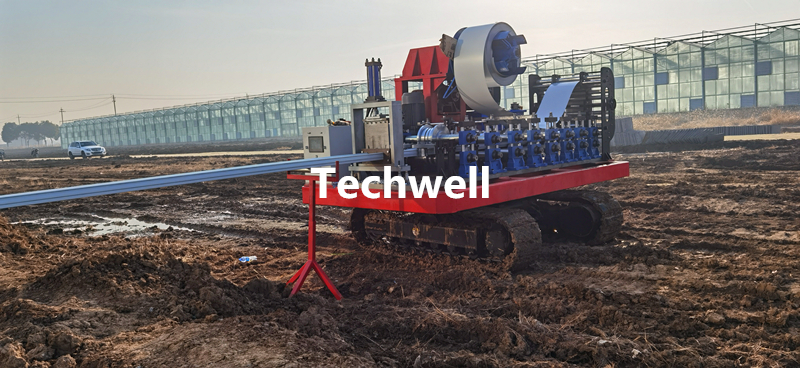

  • This mobile greenhouse gutter forming machine is movable caterpillar mounted type machine, which can do site-working at the desired length. And the machine base can rotate 360° and move forward and backword for special site-working requirement.

  • And the forming machine base structure is quick interchangeable Cassette tyoe structure for different profiles required. And if in future the user want to add new more profiles, just need to buy the cassette type forming part and cutting device.

  • Forming Station: 8 Station

  • Shaft Diameter: φ75mm

  • Main Power: 7.5KW

  • Hydraulic Power: 11KW

  • Caterpillar Chassis Working Type: Hydraulic drive move forward, backward and rotate 360°.

  •  PLC: PANASONIC Brand

  •  Inverter: YASKAWA Brand

growing gutter roll forming machine

mobile greenhouse gutter machine

greenhouse gutter roll former

greenhouse gutter roll forming machine

gowing gutter forming machine

strawberry gutter machine

tomato gutter forming machine
