Multi-Profiles Cassette Racking System Roll Forming Machine

Contents

Multi-Profiles Cassette Racking System Roll Forming Machine Line

1)       The multi-profiles Cassette Racking Column roll forming machine can produce various profiles by changing the rollers mould in the cold-form industries. It can continuously form the steel strip into the product according to customer’s requirement and cut to length automatically. This equipment has many advantages with low noise, stable transmission, easy operation, good looking and so on.

2)       This Cassette quick change system upright post roll forming machine line is with 3 sets Cassette type Main Roll Forming Parts for 7 different profiles + 4 sets Punching Moulds with pre-cutter + 3 sets Punching Moulds with Pre-notching for flat sheets, and with shared parts: Machine stand with 900mm height,Coupling Gearbox transmission part, flying shearing device with 3 sets post-cutting scrap free type + 3 sets post-cutting with scrap type, Extra cutting device, Hydraulic Station, PLC Controllers, Non-power Type Support Table ( Customer himself provide “the uncoiler, leveler, servo feeder, press machine “ )

3)       The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in. steel structure and metal cold roll forming machinery industry.

Technical Specification of Cassette Upright Racking Roll Forming Machine Line

No.

Item

Parameter

Remark

1.

Suitable Material

Type

GI



Thickness

1.5-3.0mm

Racking Frame Strut profiles 100mm / 120mm

1.6mm-2.0mm



82mm Rack profiles with Rear lip / Without Rear Lip

1.5-3.0mm

Euro Strut profile 55 / 77mm

Yield Strength

355Mpa



Width

Based on profiles

2.

Forming Speed

0-15m/min.



3.

Forming Station

 18

Racking Frame Strut profiles 100mm / 120mm

 22

Euro strut profile 55 &77mm

 18

82mm Rack profiles with Rear lip / Without Rear Lip

4.

Motor Power

Main Machine

 22KW

For Roll Forming

Hydraulic Stations



 7.5KW

For cutting

Servo Power

 4.4KW

For flying tracking

5.

Total Power

 33.9KW



6.

Electric Source

AC380V, 3 Phase

Or Customized

7.

Main Machine color

Blue

Or Customized

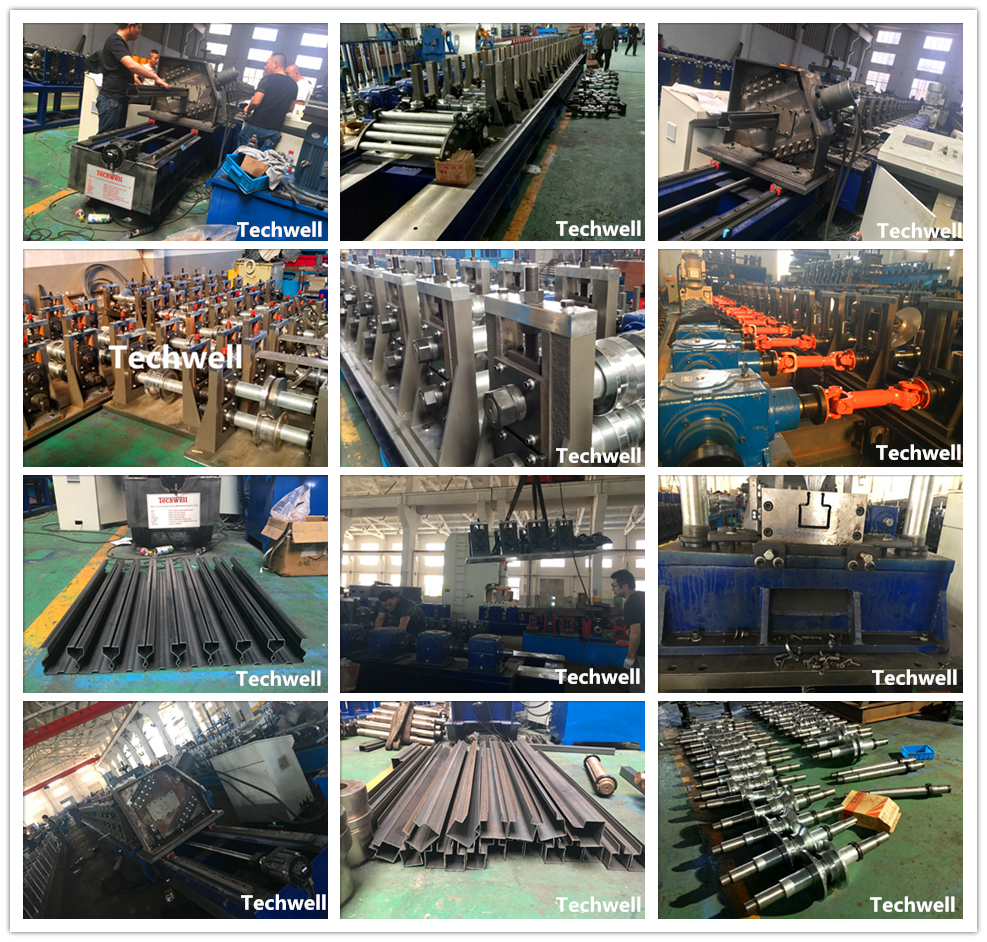

Cassette Roll Forming Structure Pictures

cassette roll forming machine

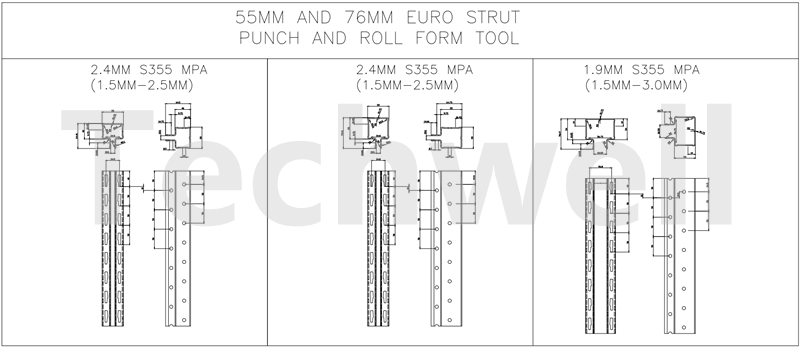

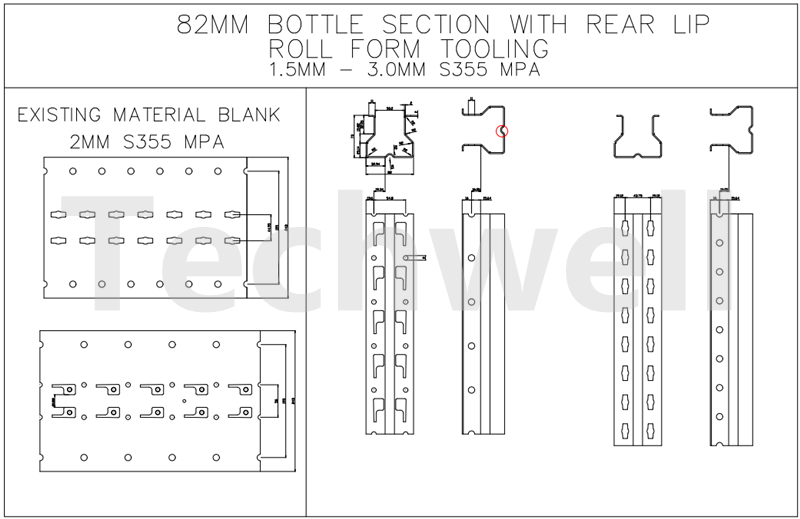

The Rack Column Section Profile Drawings

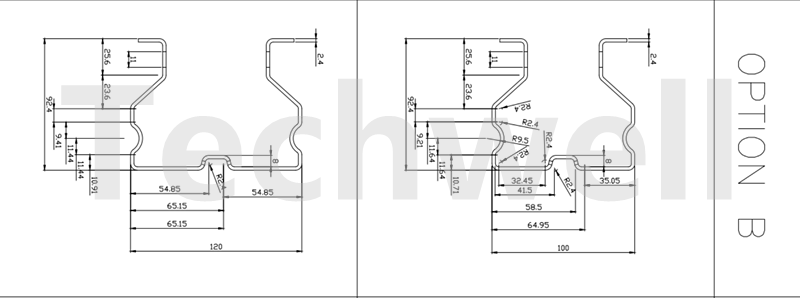

upright sction profile drawing

upright profile roll forming machine

upright column roll forming machine

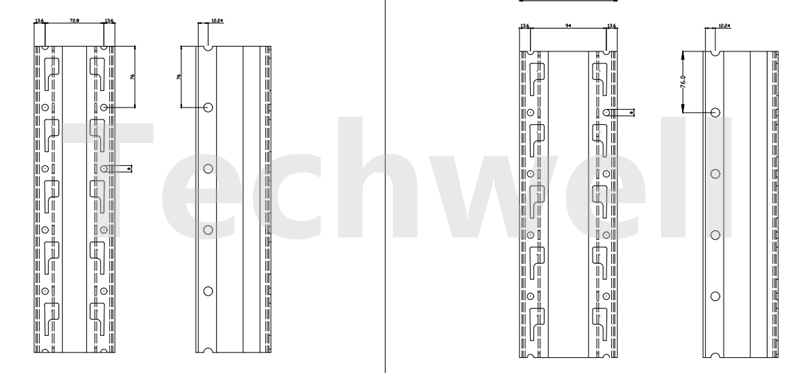

rack post profile drawing

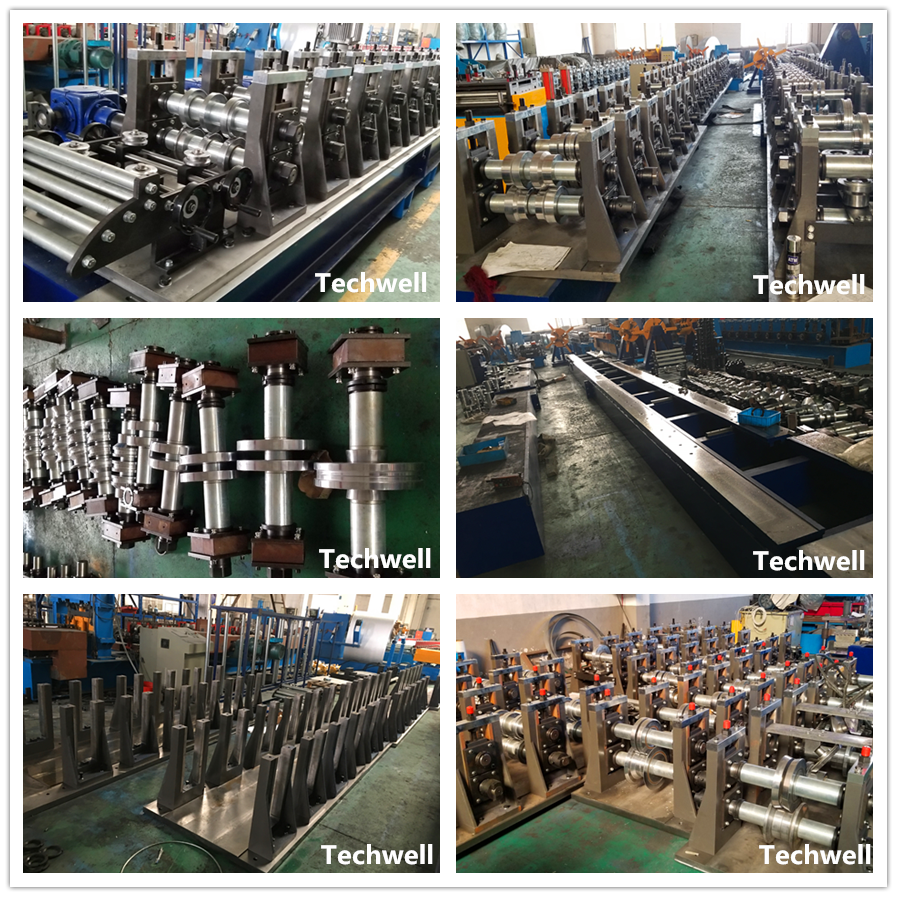

More Pictures of Cassete Racking System Roll Forming Machine

upright rack roll forming machine
